PRODUCT HIGHLIGHTS:

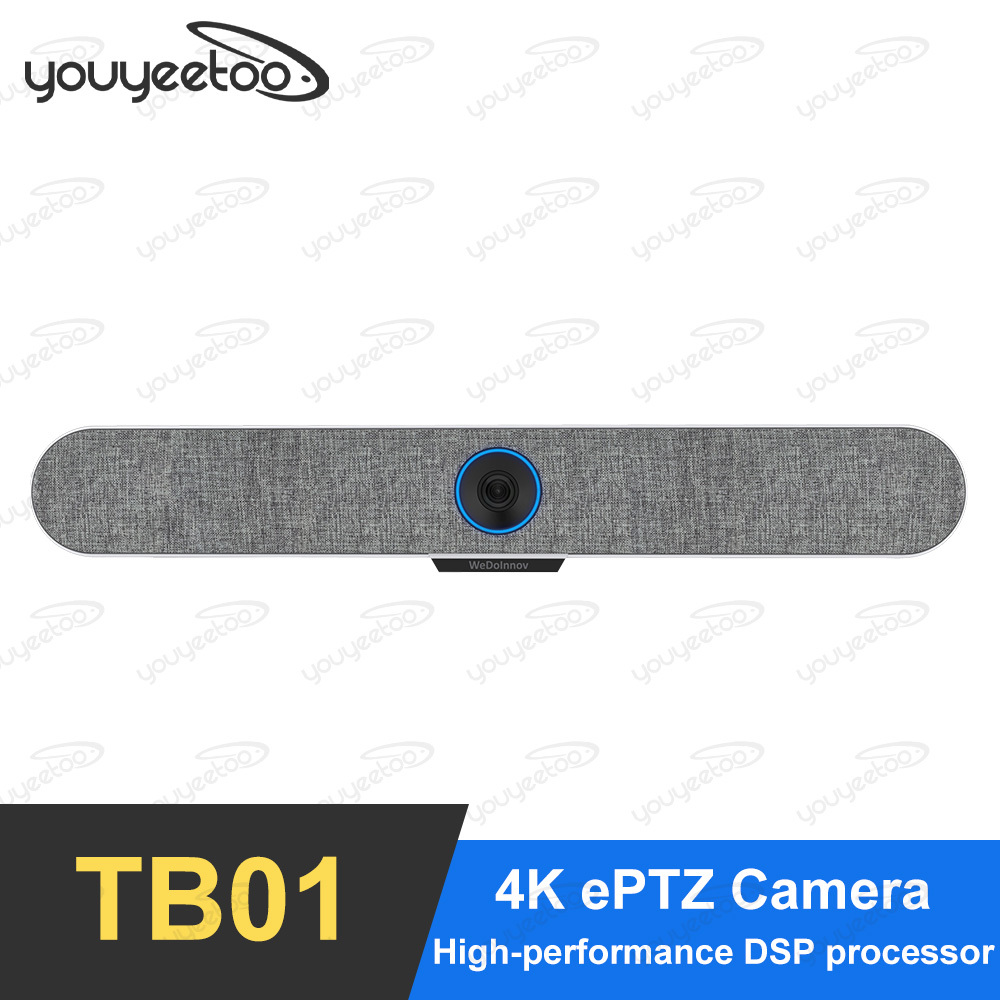

4K ePTZ Camera
The 110°ultra-wide angle camera of the TB01 is able to capture all meeting participants in its field of view. Additionally, the high pixel count of the TB01helps to ensure that every expression of people within 16’of the camera is captured and seen.
Ai Face Tracking
TB01 uses the newly developed Ai smart zoom and portrait tracking function,The camera realizes intelligent tracking, with automatic zoom in, zoom out,and pan functions，Keep the subject always in the center of the screen, and communication efficiency is further improved.
Speaker
A speaker bar delivers audio to the far end of the room. Combine that with renowned audio processing technology integrated in the TB01, and you get a workflow with natural conversations taking place between the participants.
Built in 4 Microphone
The Four-element microphone array is software-enhanced and delivers optimal vocal clarity, ensuring everyone’ s voice is heard.
Software Compatibility
TB01 works with most any video conferencing application or meeting service.Including Skype for business, BlueJeans, Broadsoft, LifeSize Cloud, Vidyo,Slack, Vidyo, WebEx, Join.Me, Micro soft Teams, GoToMeeting, and Zoom etc.
Designed for Fexible BYOD Solutions 4K Ai Face Tracking Video Soundbar
TB01 is a new generation video soundbar design for medium rooms video collaborations.The camera is 4K with Ai face tracking and auto zooming feature, and wide view angle of 110° to cover all the participants in the picture clearly.It is build-in with microphone array for voice pick-up range up to 5 meters, hi-fi true voice speaker and most importantly, with smart dsp for audio processing of acoustic echo cancellation, automatic noise suppression and gain control. The connection is simply by USB and no need driver process. so just plug in and play. It is compatible with most of the UC platforms and video collaboration applications such as Zoom, Skype, Micro soft Teams etc.TB01 is definitely one of the best for BYOD video collaboration solutions!
Product specification
Product model
TB01
Camera
- 4K ePTZ Camera
- View angle: 110°
- Camera resolution: 4k30fps、
1080P30fps、720P30fps, etc.
Microphone Array
- Built-in 4 Mic
- Voice pick up range up to radius 16’
- Acoustic echo cancellation
- Automatic noise suppression
DSP Audio
- AEC technology
- AGC (Automatic gain control)
- Noise Reduction
Speaker
Amplier power:20w

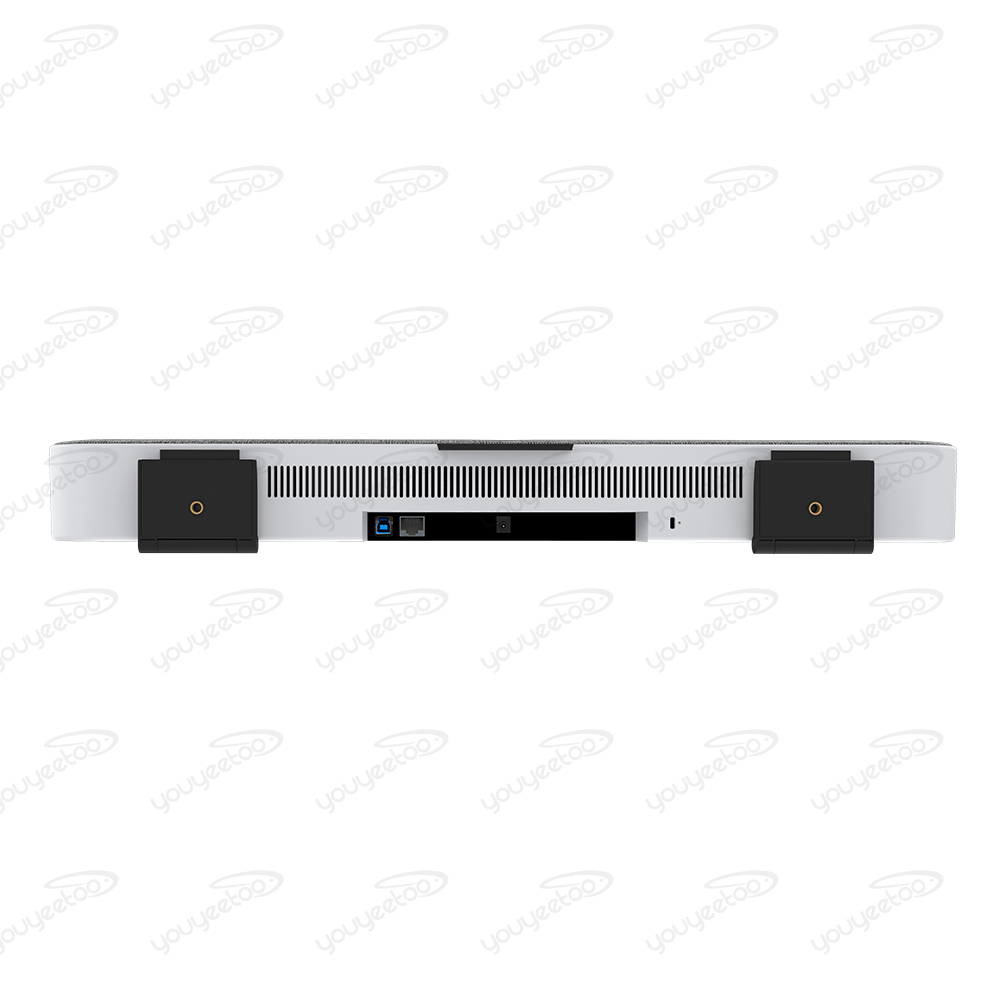

Physical Interface
• 1 x USB 3.0 Type-B port
• 1 x Power interface
• 1 x 10/100/1000 Mbps Ethernet port
• 1 x Security lock slot
DSP AUDIO:
• AEC technology
• AGC (Automatic gain control)
• Noise Reduction
Physical Interface:
• 1 x USB 3.0 Type-B port
• 1 x Power interface
• 1 x 10/100/1000 Mbps Ethernet port
• 1 x Security lock slot
Other
- Product size: 602.25mm X 94mm X 67mm
- Wall-Mounted accessories
- Indicator: Loop Rainbow LED Light Band
- Power supply: DC 12V
- Application: Enterprises Video Conferencing,
Business Negotiations, remote education
and training, Telemedicine and remote
medical consultations.
- Warranty: 12 months
- Operating temperature: 0~40°C
- Relative humidity: 95%, non-condensing
- Storage temperature: -10~70°C
Ai smart zoom and tracking function
TB01 uses the newly developed Ai smart zoom and portrait tracking function,The camera realizes intelligent tracking, with automatic zoom in, zoom out, and pan functions, Keep the subject always in the center of the screen, and communication efficiency is further improved.
High-performance DSP processor
The DSP processor of TB01 have made revolutionary progress on overall performance, power consumption and core area. It brings fast and smooth video collaboration experience and fully meet a variety of conference scenarios. Powerful codec capabilities can easily achieve 1080p video conferencing.
To see all
Equiped with 4K ePTZ camera with view angle 110°,it gives you big picture views with as close to real life quality as you can get. Low noise while taking every details in
110° Wide-view angle
110° wide view angle, 4k HD lens, All the participants are clearly presented.
Make it happen, instantly
Simple to operate, just a click to join in communication. With help of whiteboard and document sharing function, just greatly improve our communication efficiency.
Noise cancellation for clearer and more natural sound
Suppress environmental background noise from keyboard and mouse etc., while make speaker's voice heard clearly.
