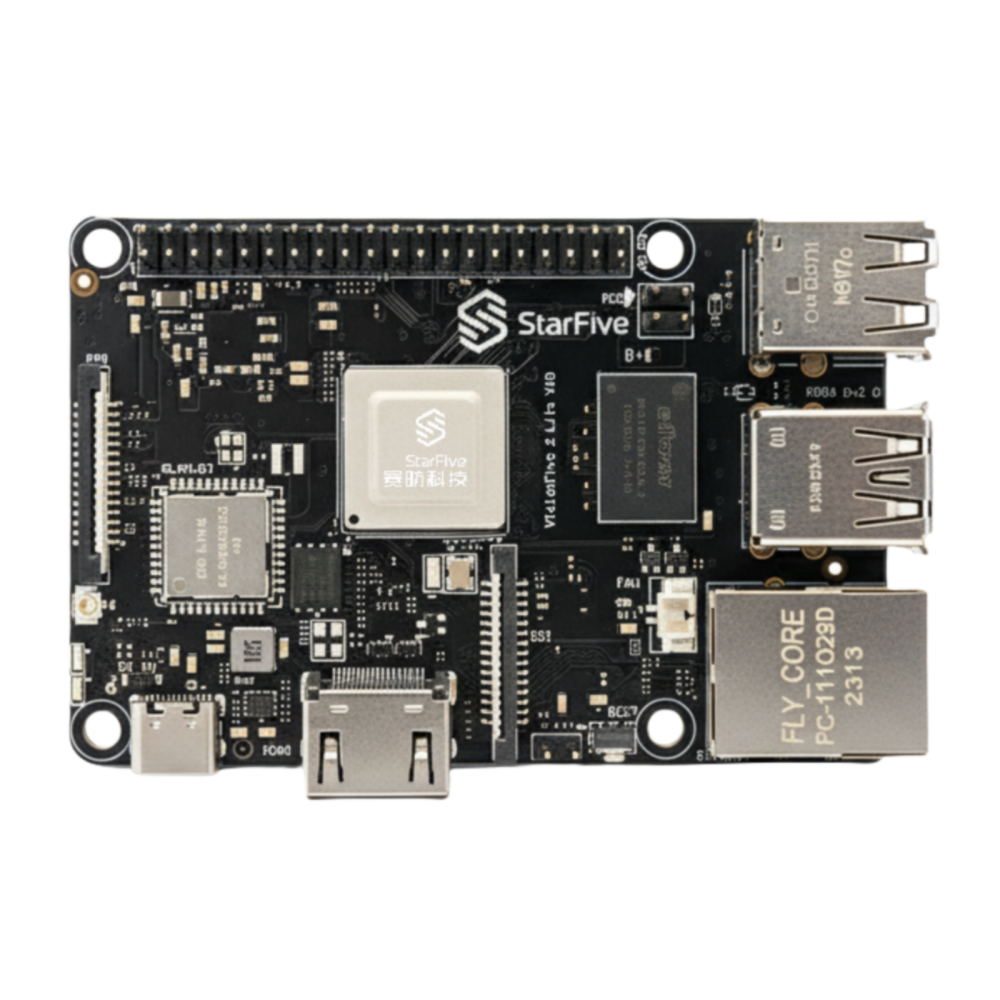

StarFive VisionFive 2 Lite, 4-Core 64-Bit RISC-V Dev Board, 2GB LPDDR4, 4K@60 HDMI, PCIe 2.0 NVMe, Wi-Fi 6/BT5.4, Gigabit Ethernet, 40-Pin GPIO, Low-Cost Linux SBC for IoT/Edge Learning

• Quick Start
• Tips

Introduction

VisionFive 2 Lite is a credit-card-size RISC-V single-board computer engineered for developers who need an affordable, Linux-ready platform with PC-class I/O. The open-source JH-7110 quad-core 64-bit processor delivers balanced performance while the on-board PCIe 2.0 lane lets you add NVMe SSDs for reliable data logging. Dual MIPI interfaces, 4K HDMI, hardware video codec and an Imagination GPU turn the board into a smart-camera or digital-signage engine, and the Raspberry-Pi-style 40-pin header preserves your existing sensor ecosystem. Whether you are prototyping an IoT gateway, teaching RISC-V assembly, or qualifying a royalty-free processor for your next product, VisionFive 2 Lite shortens the learning curve and the BOM line.

Features

[Quad-Core 64-Bit RISC-V] Ships with open JH-7110 SoC @ 1.25 GHz—no royalties, full transparency for Linux, RTOS or bare-metal projects.
[4K Multimedia] Decode 4K@60 H.264/H.265 via HDMI 2.0, dual MIPI-DSI/CSI for cameras & displays; GPU supports OpenGL ES 3.2 & Vulkan 1.2.
[High-Speed Storage] Micro-SD + M.2 2242 NVMe PCIe 2.0 ×1 (≈ 0.5 GB/s) + on-board eMMC pads give industrial-grade reliability and fast boot.
[Pi-Compatible GPIO] 40-pin header mirrors Raspberry Pi pin-out; 28 × 3.3 V GPIO, I²C, SPI, UART, PWM—drop-in for sensors, motor HATs, PoE addon.
[Connectivity & Power] Gigabit Ethernet, optional Wi-Fi 6/BT 5.4, USB 3.0/2.0, USB-C PD 5 V/3 A; 85 × 56 mm, ‑25 °C to 70 °C ready.

Shipping List

1x VisionFive 2 Lite

Applications

From AI vision nodes to classroom labs, VisionFive 2 Lite drops royalty-free RISC-V horsepower anywhere you need Linux on a credit-card footprint.

Specification

SoC: JH-7110, 4 × SiFive U74 @ 1.25 GHz + monitor core
RAM: 2 GB / 4 GB / 8 GB LPDDR4
Storage: micro-SD, M.2 2242 Key-M PCIe 2.0 ×1, eMMC pad (optional)
Video: 4K@60 decode, 1080p@30 encode; HDMI 2.0, 2-lane MIPI-DSI, Imagination BXE-4-32 GPU
Camera: 2-lane MIPI-CSI
USB: USB 3.0 ×1, USB 2.0 ×3
Network: Gigabit Ethernet; optional on-board Wi-Fi 6 + BT 5.4
GPIO: 40-pin, 28 × GPIO, 3.3 V, I²C, SPI, UART, PWM, I²S
Power: USB-C 5 V/3 A, GPIO 5 V input, 2-pin fan header
Size: 85 × 56 mm; weight ≈ 55 g
Temp: ‑25 °C to +70 °C operating
