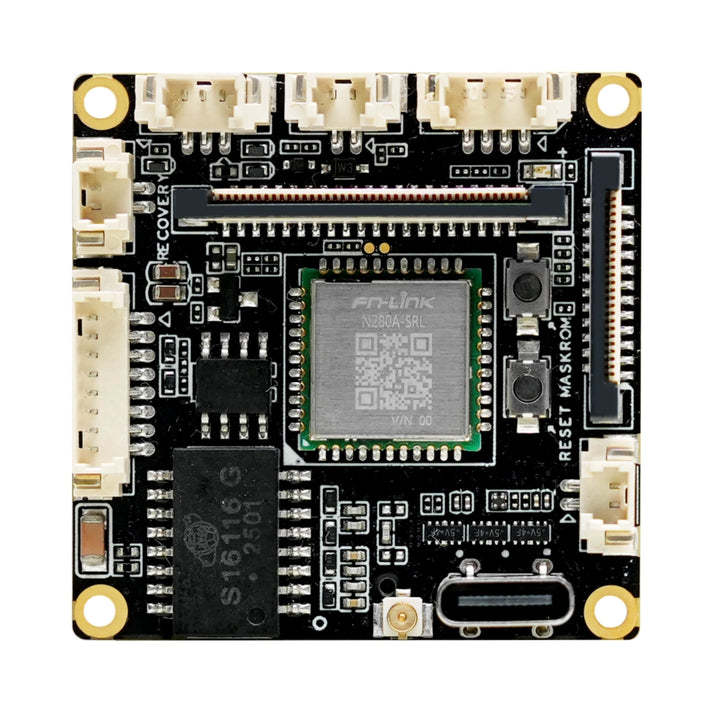

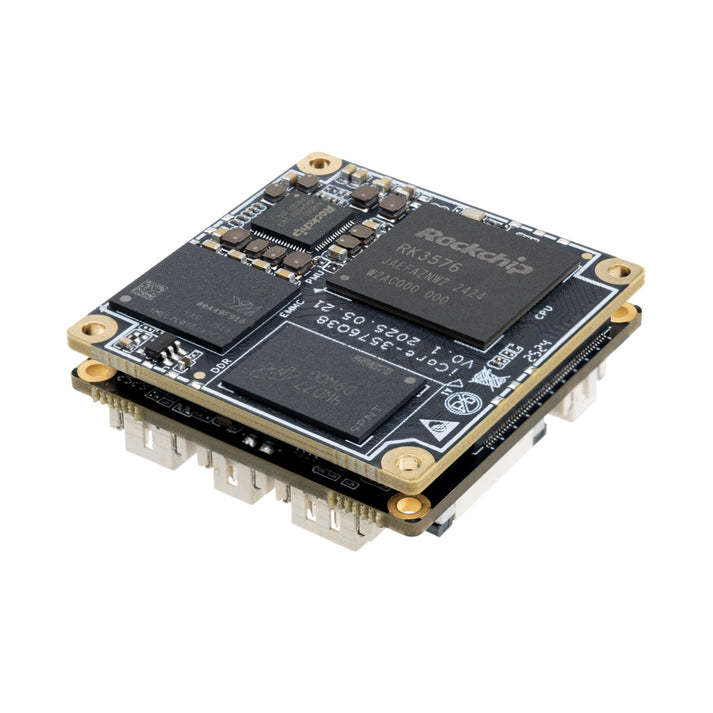

Firefly CAM-3576Q38 RK3576 Mini AI SBC – 6 TOPS NPU 8-Core 2.2GHz, 4GB/8GB/16GB LPDDR5, 4K@120fps Decode, WiFi6, 38mm Industrial Edge Computing Board for AIoT/Embedded Vision

• CAM-3576Q38: Rockchip RK3576
• CAM-3576JQ38: Rockchip RK3576J

CAM-3576MQ38: Rockchip RK3576M

• CAM-3576Q38: Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz
• CAM-3576JQ38/3576MQ38: Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 1.6GHz

G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware

6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32 operations, supports dual-core collaborative or independent work, and supports multi-task and multi-scene parallelism

LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB optional)

eMMC (16GB/32GB/64GB/128GB/256GB optional)

1 x TF Card

1 WiFi module on board, supporting 2.4GHz/5GHz dual-band WiFi6 (802.11a/b/g/n/ac/ax)

DC 12V (Connected via 8P-1.25mm Wafer connector)

• It supports RTLinux kernel and has excellent real-time performance, which is widely used in industrial application scenarios.
• Support Linux OS, Buildroot, and provide a safe and stable system environment for product research and production.
• It has new industrial features such as real-time network, Flexbus, hardware resource isolation, and DSMC to meet the needs of different industrial applications.

38.09mm × 38.11mm × 11.54mm

≈21g

CAM-3576Q38: Operating Temperature: -20℃- 60℃
Storage Humidity: 10%～90%RH (non-condensing)

CAM-3576JQ38/3576MQ38: Operating temperature: -40℃～85℃
Operating humidity: 10%～90%RH (non-condensing)

1 × 100M Ethernet (Led out via 8P-1.25mm Wafer connector)

1 × Reset, 1 × MaskRom
