DC/DC Converter - 84W, Industrial Grade Wide / Voltage Ramp-Up and Down / High Power Regulated Output - IIO-PW948

Name: DC/DC Converter - 84W, Industrial Grade Wide / Voltage Ramp-Up and Down / High Power Regulated Output - IIO-PW948
Brand: youyeetoo geeker shop
SKU: XHDPPWR94803
Price: 22.4 USD
Availability: InStock

SKU: XHDPPWR94803

Maximum output power: 84W
Industrial Grade Wide: -40 ~ 85℃
Input: 9~48V
Output: 12V, 19V, 24V
Conversion efficiency: 98%

0.0 (0 Reviews)

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
Reviews

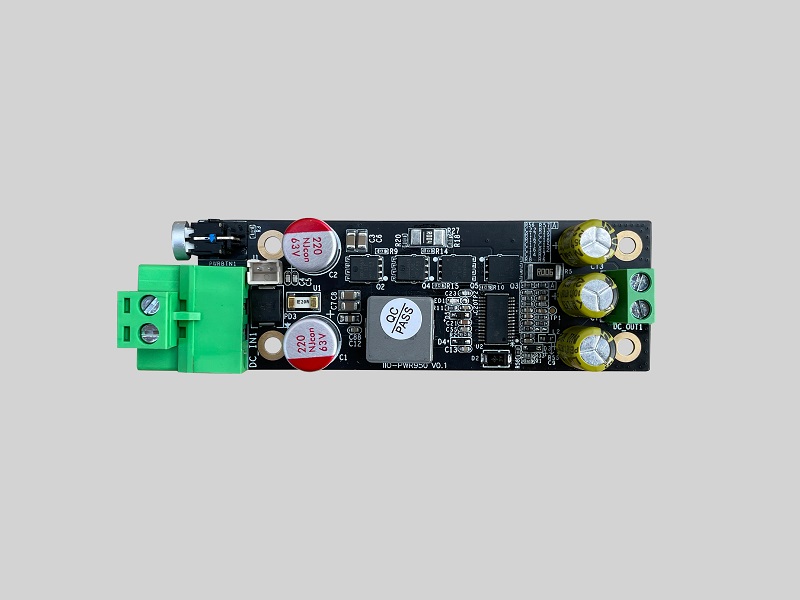

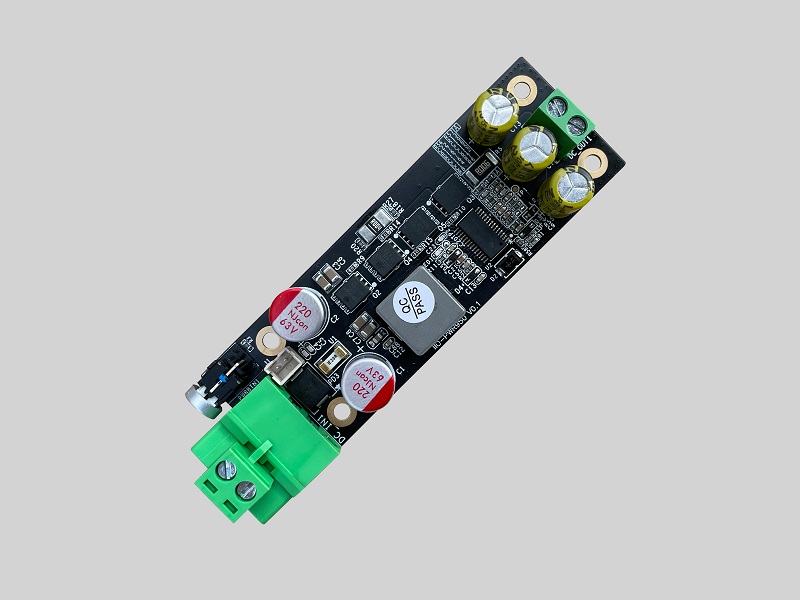

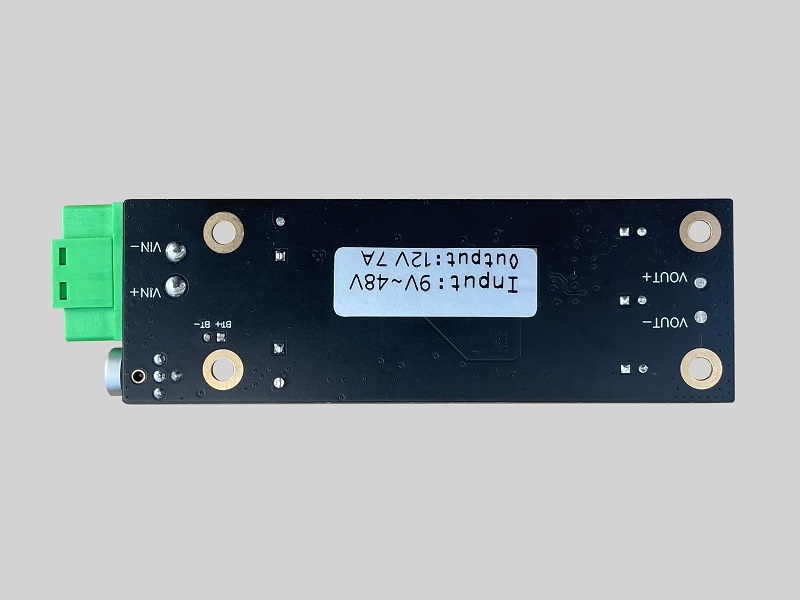

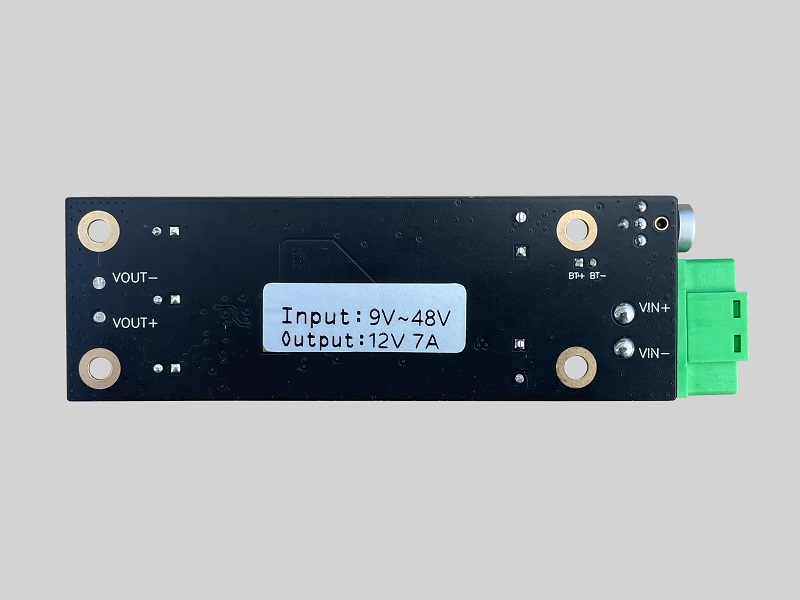

DC/DC Converter - 84W, Industrial Grade Wide / Voltage Ramp-Up and Down / High Power Regulated Output

Datasheet: https://drive.google.com/drive/folders/1CbWlBs2LfOD1KDuUDFJor9u4y2pnPkeS
Tips

Features

Maximum output power: 72W
Industrial Grade Wide: -40 ~ 85℃
Input: 9~42V Output: 5V
Input: 16~42V Output: 12V
Conversion efficiency: 98%

Specification

Technical Data	Specifications
Input voltage	9 V – 48 V
Input current	<20 A
Output voltages	12V,19V,24V – Resistance adjustment
Max. output current	12V/7A, 19V/5A, 24V/4 A
Max. output power	84 W at all adjustable output voltages
Capacitive load	1000 µF
Protection
- Input	NO reverse polarity protection, UVLO (under voltage lockout), OVP (over voltage lockout)
- Output	OVP (overvoltage protection), OCP (active overcurrent and short circuit protection)
Ambient temperature
- Operating	-40 ~ +85 °C
- Storage / Transport	-40 ~ +85 °C
Operating altitude	≤5000 m
Max. permitted humidity	≤95 % (at +25 °C, no dew)
Dimensions (W/ H / D)	90 x 30 x 10mm
Weight	~28 g
